Staring version 3.8.9 the Advanced Post Types Order got a major code extension to include the possibility to focus a sort on an exact front site query contain a Custom Field Handling / meta_query section. The Custom Fields meta data is the way WordPress save additional information for custom post types. These are used by custom code (theme and plugins) for post-processing.
A sample example on how a query including custom fields looks like:
$argv = array( 'post_type' => "products", 'meta_query' => array( 'relation' => 'AND', array( 'key' => "_color", 'value' => array("blue", "red"), 'compare' => 'IN', 'type' => "CHAR", ), array( 'key' => "_availability", 'value' => "yes", ), ), ); $custom_query = new WP_Query($argv);

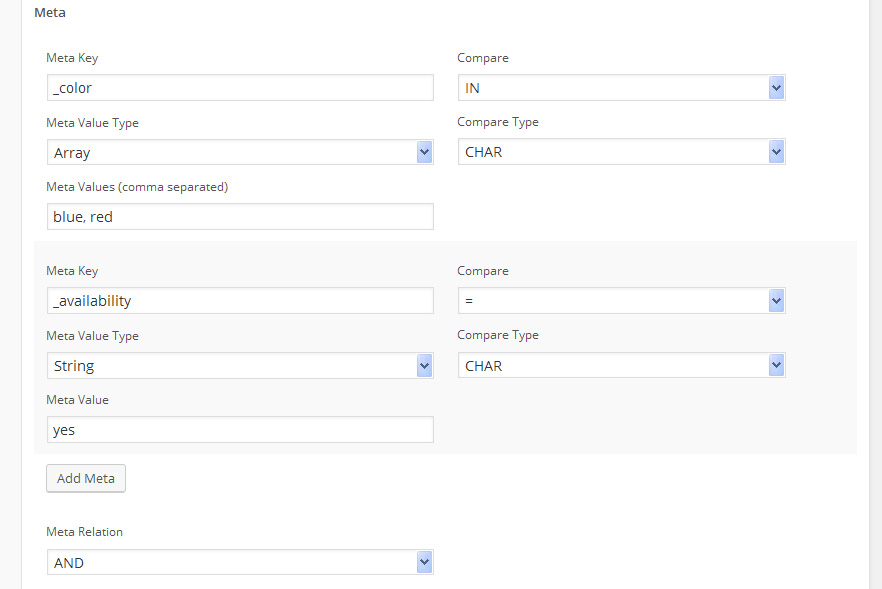

To create a sort for such custom query, the Sort Settings – Query Rules – Meta area can be used. It just require to create the entries as they appear in the query arguments:
Once saved, the sortable interface will show only the items which match the set-up query, the ones which also display on front side. Drag and drop items around will re-order the objects on front side accordingly.
